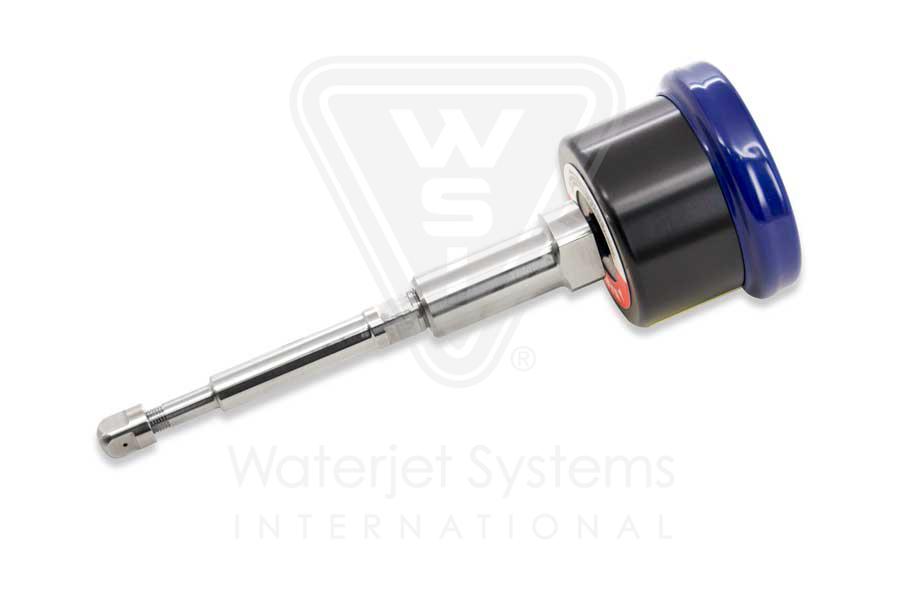

Pneumatic Cutting Head Assembly, Normally Closed, Quick Release

Part Numbers:

WSI Part Number: VL80085053 KMT Part Number: 80085053

Product Details:

This is a 60K quick release water only, normally closed, pneumatic valve cutting head assembly. It comes standard with the .38” x 5.605” nozzle tube, 3/8” right-hand nozzle nut and choice of standard long stem sapphire water orifice. The orifice size can be specified in the notes section at the time of check out. Orifice sizes range from .003” (0.080mm) to .016” (0.40mm). The actuator has standard air intake with 1/8-27 NPT right-hand thread. The suggested air pressure for this actuator is 85 – 120 PSIG. (Mounting collar & short stop filter assembly are sold separately.)
