Abrasive Nozzle Assembly, .014" / 0.35 mm, Single Port, RH, IDE III, 301329-1-14

Part Numbers:

WSI Part Number: FW301329-1-14 H2O Jet Part Number: 301329-1-14

Product Details:

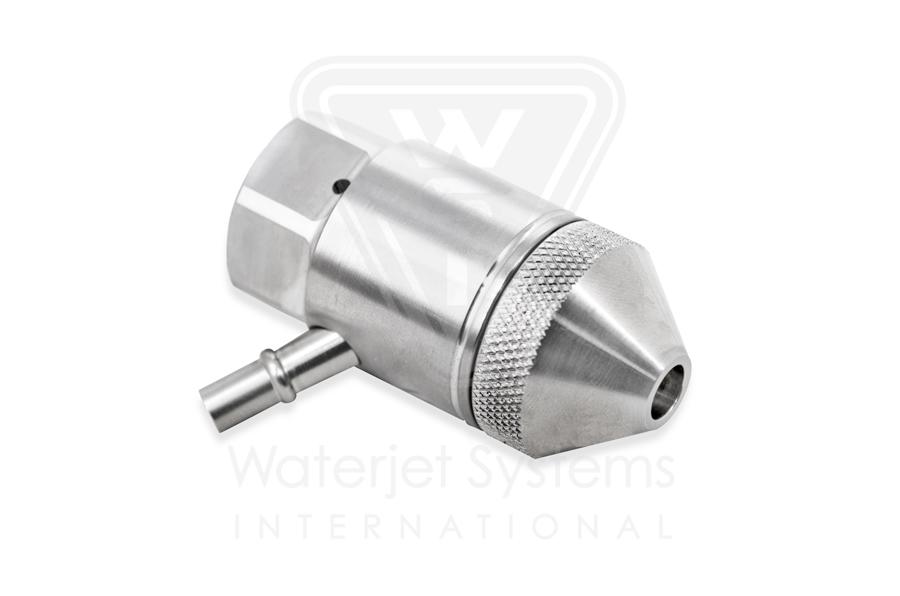

The WSI FW301329-1-14 Style Abrasive Cutting Head Assembly is a premium replacement cutting head designed for abrasive waterjet cutting applications. Featuring an integrated diamond orifice, precision-engineered mixing chamber with a ¾-16 RH nozzle tube connection. This cutting head provides optimal stream alignment for the highest possibly energy transfer, consistent cut quality, and extended focusing tube life.

The FW301329-1-14 is manufactured from premium materials to withstand demanding production environments while delivering reliable performance in metal, stone, glass, composite, and other abrasive waterjet cutting applications.

Key Features
Integrated diamond orifice design for precise stream alignment
Promotes consistent cutting performance and cut quality
Helps maximize focusing tube life by reducing stream misalignment
Utilizes .281 diameter mixing tubes
Durable construction for demanding industrial applications
Compatible with IDE III® style cutting head configurations with ¾-16 RH nozzle tube thread

Contact WSI for compatibility information, available orifice sizes, and application recommendations.
